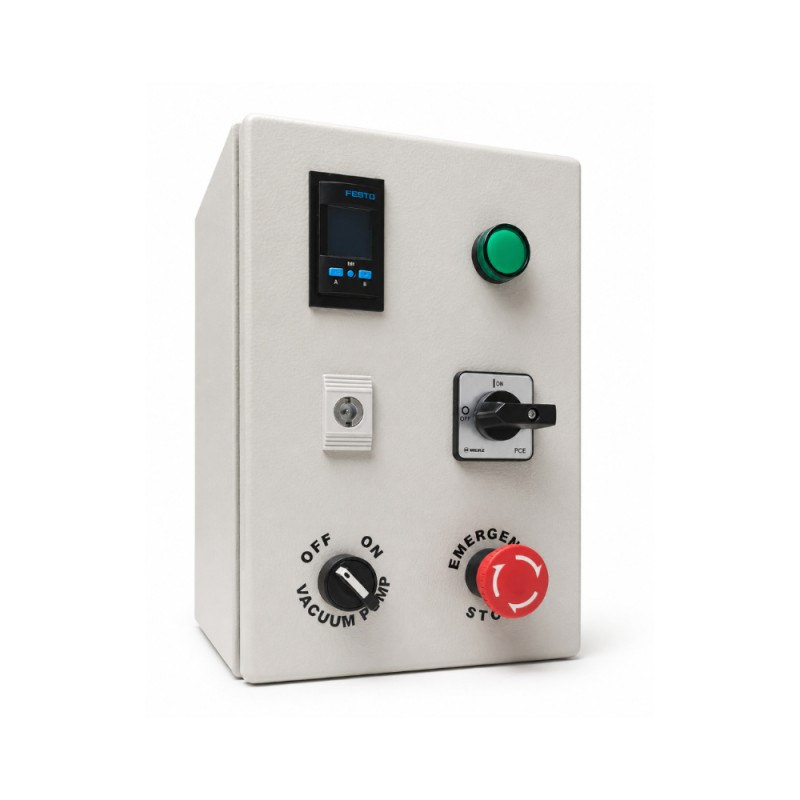

Vacuum level control system VLCU-3D-SPAU

Vacuum level control system VLCU-3D-SPAU
Vacuum level control system VLCU-3D-SPAU
  • Model: VLCU-3D-SPAU
  • Type:   Three phase
  • Max. Output current:  On request from 2,5 A till 10 A
  • Voltage AC:  400 V
  • Settings range: -1 - 0 bar
  • Сontrol device: Festo SPAU
  • Availability: In Stock
  • Gross Weight: 7.00kg
  • Packaging dimensions: 20.00cm x 20.00cm x 30.00cm
0 reviews • Write a review
580.80€
Ex Tax: 480.00€

Available Options

Add to Cart
Add to Wish List Compare this Product
Tags: VLCU-3D-SPAU , Control units , Vacuum press

VLCU-3D-SPAU Vacuum Level Control Unit for Three-Phase Vacuum Pumps

The VLCU-3D-SPAU vacuum level control unit with automatic Start / Stop function is designed to control the operation of vacuum pumps equipped with three-phase motors 3Ph 400 V, 50 Hz. Depending on the version, the unit supports an output current from 2.5 A to 10 A.

The control unit is equipped with integrated motor protection and is suitable for vacuum systems where automatic vacuum maintenance is required. It switches the vacuum pump on and off according to the preset vacuum level, helping to reduce pump running time, improve energy efficiency and maintain stable vacuum conditions during operation.

Vacuum control is based on a Festo SPAU series V1R pressure sensor. The sensor features a backlit digital display, which makes setup and monitoring easy. The current vacuum level is shown directly on the display, and the required vacuum value is maintained automatically.

Main features

  • Designed for three-phase vacuum pumps: 3Ph 400 V, 50 Hz.
  • Output current range: 2.5–10 A, depending on the version.
  • Automatic vacuum pump Start / Stop control.
  • Integrated motor protection.
  • Vacuum level setting range: -1 to 0 bar.
  • Hysteresis setting range: 0–90%.
  • Selectable measurement units: MPa, kPa, bar, psi.
  • Digital pressure sensor with backlit display.

Connection and system requirements

For correct operation of the vacuum level control unit, the vacuum system must be equipped with a receiver with a minimum volume of 5 litres. The control unit is connected to the vacuum system using a 4 mm vacuum tube.

The VLCU-3D-SPAU is supplied with a 3 m vacuum tube and a G1/8 threaded quick coupling for convenient connection to the vacuum system.

Factory settings

  • Vacuum pump switch-off level: -0.85 bar.
  • Vacuum pump switch-on level: -0.65 bar.
  • Protection class: IP40.
Technical data
Type of control Automatic (Start/Stop)
Motor phase Three-phase
Supply voltage 400 V AC
Supply frequency 50 Hz
Vacuum setting range (gauge pressure) −1…0 bar
IP rating IP40
Factory pump stop setting −0.85 bar
Factory pump start setting −0.65 bar
Vacuum tube diameter 4 mm
Minimum required receiver volume 5 L
Available motor current ratings 2.5–10 A, depending on version (on request)
Control device Festo SPAU V1R
